Aperçu ProduitsAmortisseurs remplis de mousse

D-type polyurethane fender

D-type polyurethane fender

  • D-type polyurethane fender
  • D-type polyurethane fender
D-type polyurethane fender
Détails sur le produit:
Lieu d'origine: Qingdao, Chine
Nom de marque: Luhang
Certification: ISO14409
Numéro de modèle: LHA2
Conditions de paiement et expédition:
Quantité de commande min: 1 pièces
Prix: Négociable
Détails d'emballage: Pellicule rigide sur le palllet
Délai de livraison: 10 | 15 jours ouvrables
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 100pcs/mois
Contact
Description de produit détaillée

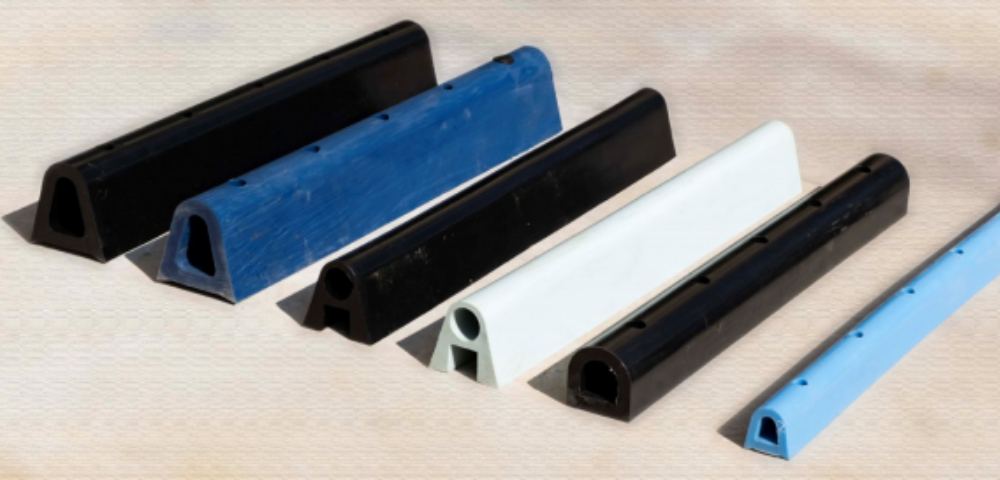

D-type polyurethane fender



1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.

D-type polyurethane fender 0

D-type polyurethane fender 1D-type polyurethane fender 2

Products Specification







Serial Number Model Specification (Width × Height × Length) MM Weight (KG)
1 Type D 200×200×1000 16
2 Type D 150×150×1000 10.6
3 Type D 100×100×1000 6.2
4 Type D 100×80×1000 6
5 Type D 80×60×1000 3.4
6 Type D 70×70×1200 3.3
7 Type D 60×50×1000 1.6



Installation method

D-type polyurethane fender 3D-type polyurethane fender 4

Installation Instructions:

1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.

2. Install the fender on the hull as shown in the figure and fasten it with bolts.
